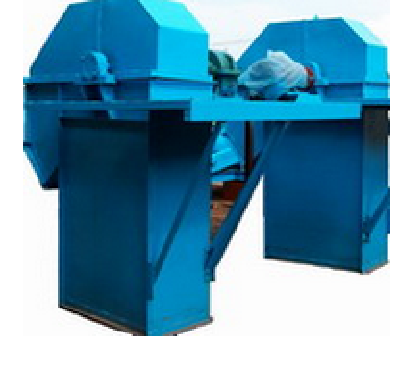

Summary of TD series bucket elevator products.

TD series of bucket elevator used in vertical conveying powder, granulated and small lump of grinding less absorption material, such as grain, coal, cement, crushed ore, hoisting height to 40 m. TD series bucket elevator in strict accordance with the JB3926-85 standard design and manufacture of vertical bucket elevator, the current domestic common bucket elevator are vertical. TD series bucket elevator features: simple structure, smooth operation, harvest type charging, centrifugal gravity discharge, the material temperature less than 60 ℃; TD series bucket elevator compared with the traditional D type bucket elevator, hopper, high transmission efficiency should be preferable. TD type bucket elevator equipped with four kinds of hopper, namely: Q type (light pipe), H (arc bottom bucket), lh-zd type (in a deep bucket), SD (deep bucket).

TD series bucket elevator basic structure:

TD type bucket elevator by running parts (hopper and traction tape), with the upper section of the drive roller, with the lower section of the idler pulley, intermediate casing, device drivers, non-return brake equipment, etc, is suitable for the upward transportation rho loose density < 1.5 t/m3 powder, granulated and small lump of no grinding cut and half cut grinding, loose materials such as coal, sand, coke, cement, at the end of the broken ore, etc. TD type bucket elevator structure form is: TD type bucket elevator drive has two types respectively with YZ type reducer ZQ (YY) type gear reducer. YZ type shaft reducer directly mounted on the spindle shaft head, eliminating the transmission platform, coupling, etc., the compact structure, light weight, and its internal with different roll non-return device, non-return and reliable. The reducer low noise, smooth operation, and with the main shaft floating, can eliminate stress.
