Product synopsis:

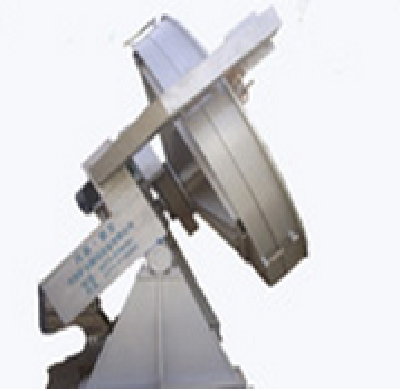

Granulating disc is also called into a ball machine, QPY type water disc into a ball machine is China's first generation of the use of electric scraper type into a new machine into a ball, the ball machine is adding water into a ball host devices in the system, the machine has the ball granularity, stable running, convenient operation, long service life, etc. QPY type water disc into a ball machine is suitable for the cement raw meal into a ball system modification or new, has the advantages of simple structure, high low, use convenient maintenance.

The main technical parameters:

specifications	Ф 1800	Ф 2200	Ф 2500	Ф 2800	Ф 3200	Ф 3600	Ф 4200
The rim is high (mm)	300	500	500	640	640	450-700	950
Production capacity (t/h)	3	8	10	16	17	18-22	33
Disk rotational speed (r/min)	19	14.25	11.81	11.14	11.18	9-12	7
Main motor power (kw)	5.5	7.5	11	11	15	18.5	30
Tilt Angle ( o )	45	35 ～ 55	35 ～ 55	35 ～ 55	35 ～ 55	45 ～ 55	40 ～ 50
Weight（ kg ）	2240	3150	4910	5660	6520	7120	9672
