Products overview:

The disc feeder for displacement measurement of feeding equipment. It is continuous and uniform material feeding to the next working procedure, and able to deal with larger cabin pressure. Suitable for feeding all kinds of viscous material, does not apply to liquid powder material. Suitable for disc feeder feeding materials are: coal, cement, clinker, gypsum, limestone, clay, slag powder, granular or small block material, this kind of feeder is suitable for the occasion of air purification degree requirements is not high.

The machine with ac drive of the motor and dc transmission two kinds, dc transmission speed, its scope is 4:1, facilitate the linkage of the centralized control and adjust the speed.

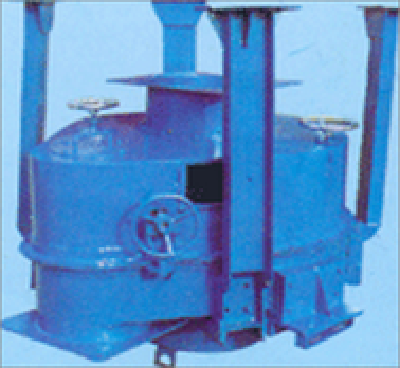

The classification of the hanging type disc feeder: DK hanging open type disc feeder, and the DB hanging close the disc feeder.

Structure and working principle:

This machine is mainly composed of motor, speed reducer, disc, a cover, scraper, feeding control device and channel steel column, etc. It by hanging in motor on the side of the plate set, v-belt, worm gear reducer vertical disc rotates. Disc set under section connected to the worm gear reducer, on the section through the channel steel column and bunker connections, motor, through the motor base fixed on the side of the plate set. So in the entire disc feeder hanging in the bottom of the bin.

Feeding material by bin spiral gate below, via the machine into the feeding tube and the activities of the sleeve flow to the disc, due to the rotation of the disc and the role of the scraper and blown down, after a dish and put on the discharging mouth poured into one equipment.

Basic technical parameters:
